Total Number of Pads	9
Snare/Tom Pad	10” Dual-Zone Mesh Snare x 1 8” Mesh Tom x 3
Kick Pad	8″ Mesh Kick Tower x 1
Cymbal Pads	13” Triple-Zone Hi-Hat x 1 12” Dual-Zone Crash x 2 14″ Triple-Zone Ride x 1
Type of Hi-Hat Control	Real HiHat Pedal
Drum Module	M-015
Number of Drum Kits	20 Preset Kits, 20 User Kits
Number of Instruments	697 Voices
Song Demo	55 Songs
Effect	EQ, Reverb, Compressor
Sensibility	Seperate
Kit Adjustment	Preset Kit, Voice, Volume
Module Trigger Inputs	1/4″ x 2
Module Analog Inputs	1/8” (AUX IN) x 1
Module Analog Outputs	1/4” (L/R) x 2, 1/8″ (Headphone) x 1
USB	USB Type-A, MIDI
MIDI I/O	–
Bluetooth	Yes
Sampling	–
Application	–
Multi-Track Recording	–
Power Source	DC 12V

Total Number of Pads	9
Snare/Tom Pad	13″ Double-Zone Mesh Snare x 1 10″ Double-Zone Mesh Tom x 1 12″ Double-Zone Mesh Tom x 1 14″ Double-Zone Mesh Floor Tom x 1
Kick Pad	20″ Mesh Head x 1
Cymbal Pads	13” Double-Zone Hi-Hat x 1 15” Double-Zone Crash x 2 18″ Triple-Zone Ride x 1
Type of Hi-Hat Control	Real HiHat Pedal
Drum Module	HDP-5
Number of Drum Kits	80 Preset Kits, 89 User Kits
Number of Instruments	3622 Voices
Song Demo	–
Effect	Reverb, Chorus, Flanger, Delay, EQ, Compressor
Sensibility	Seperate
Kit Adjustment	Power on/off, Master volume, Headphone, Effect, Pitch, Volume
Module Trigger Inputs	1/4″ TS x 2, 1/4″ TRS x 5
Module Analog Inputs	1/8” (AUX IN) x 1, D-Sub Connector Solder Type 25 Pins
Module Analog Outputs	1/4” TS (L/R) x 2, 1/4” TRS x 8, 1/8″ (Headphone) x 1
USB	USB Type Micro-B
MIDI I/O	Yes
Bluetooth	Yes
Sampling	Yes
Application	–
Multi-Track Recording	Yes
Power Source	DC12V, 2A

Total Number of Pads	10
Snare/Tom Pad	14 x 5.5″ Triple-Zone Mesh Snare x 1 11 x 8″ Double-Zone Mesh Tom x 1 13 x 13″ Double-Zone Mesh Floor Tom x 1 15 x 15″ Double-Zone Mesh Floor Tom x 1
Kick Pad	20 x 15″ Mesh Kick Tower x 1
Cymbal Pads	14” Double-Zone Hi-Hat x 1 16” Triple-Zone Crash x 2 20″ Triple-Zone Ride x 1 17″ Double-Zone Effect x 1 8″ Double-Zone Splash x1
Type of Hi-Hat Control	Real HiHat Pedal
Drum Module	EFD-7X
Number of Drum Kits	20 Preset Kits, 80 User Kits
Number of Instruments	101 Voices
Song Demo	50 Songs
Effect	EQ, Ambience
Sensibility	Seperate
Kit Adjustment	Preset Kit, Voice, Volume
Module Trigger Inputs	EFD-TRS-LL3 x 4
Module Analog Inputs	1/8” (AUX IN) x 1
Module Analog Outputs	1/4” (L/R) x 2, 1/8″ (Headphone) x 1
USB	USB Type Micro-B
MIDI I/O	Yes
Bluetooth	Yes
Sampling	Yes
Application	Yes
Multi-Track Recording	Yes
Power Source	DC 12V, 500mA (Nominal) / 800mA (Max)

Total Number of Pads	10
Snare/Tom Pad	12 x 5″ Triple-Zone Mesh Snare x 1 10 x 7″ Double-Zone Mesh Tom x 1 12 x 12″ Double-Zone Mesh Floor Tom x 1 13 x 13″ Double-Zone Mesh Floor Tom x 1
Kick Pad	16 x 12″ Mesh Kick Tower x 1
Cymbal Pads	14” Double-Zone Hi-Hat x 1 16” Triple-Zone Crash x 2 18″ Triple-Zone Ride x 1 8″ Double-Zone Splash x1
Type of Hi-Hat Control	Real HiHat Pedal
Drum Module	EFD-5X
Number of Drum Kits	17 Preset Kits, 83 User Kits
Number of Instruments	98 Voices
Song Demo	50 Songs
Effect	EQ, Ambience
Sensibility	Seperate
Kit Adjustment	Preset Kit, Voice, Volume
Module Trigger Inputs	EFD-TRS-LL3 x 4
Module Analog Inputs	1/8” (AUX IN) x 1
Module Analog Outputs	1/4” (L/R) x 2, 1/8″ (Headphone) x 1
USB	USB Type Micro-B
MIDI I/O	Yes
Bluetooth	Yes
Sampling	Yes
Application	Yes
Multi-Track Recording	Yes
Power Source	DC 12V, 500mA (Nominal) / 800mA (Max)

Total Number of Pads	10
Snare/Tom Pad	12 x 4″ Triple-Zone Mesh Snare x 1 10 x 3.5″ Double-Zone Mesh Tom x 2 12 x 4″ Double-Zone Mesh Floor Tom x 2
Kick Pad	12 x 4″ Mesh Kick Tower x 1
Cymbal Pads	14” Double-Zone Hi-Hat x 1 16” Triple-Zone Crash x 2 18″ Triple-Zone Ride x 1
Type of Hi-Hat Control	Real HiHat Pedal
Drum Module	EFD-3X
Number of Drum Kits	16 Preset Kits, 34 User Kits
Number of Instruments	141 Voices
Song Demo	50 Songs
Effect	EQ, Ambience
Sensibility	Seperate
Kit Adjustment	Preset Kit, Voice, Volume
Module Trigger Inputs	EFD-TRS-LL3 x 4
Module Analog Inputs	1/8” (AUX IN) x 1
Module Analog Outputs	1/4” (L/R) x 2, 1/8″ (Headphone) x 1
USB	USB Type Micro-B
MIDI I/O	Yes
Bluetooth	Yes
Sampling	Yes
Application	Yes
Multi-Track Recording	Yes
Power Source	DC 12V, 500mA (Nominal) / 800mA (Max)

Total Number of Pads	9
Snare/Tom Pad	8” Dual-Zone Mesh Snare x 1 7” Mesh Tom x 3
Kick Pad	10″ Mesh Kick Tower x 1
Cymbal Pads	10.5” Dual-Zone Hi-Hat x 1 11” Dual-Zone Crash x 2 11″ Triple-Zone Ride x 1
Type of Hi-Hat Control	Hi-Hat Control Pedal
Drum Module	New 1G
Number of Drum Kits	28 Preset Kits
Number of Instruments	600 Voices
Song Demo	43 Songs
Effect	EQ, Reverb
Sensibility	Seperate
Kit Adjustment	Preset Kit, Voice, Volume
Module Trigger Inputs	–
Module Analog Inputs	1/8” (AUX IN) x 1
Module Analog Outputs	1/4” (L/R) x 1, 1/8″ (Headphone) x 1
USB	USB Type-A, MIDI
MIDI I/O	–
Bluetooth	Yes
Sampling	–
Application	–
Multi-Track Recording	–
Power Source	DC 9V

Total Number of Pads	8
Snare/Tom Pad	8” Dual-Zone Mesh Snare x 1 7.5” Mesh Tom x 3
Kick Pad	7.5″ Silicone Rubber Kick Tower x 1
Cymbal Pads	10” Dual-Zone Hi-Hat x 1 10” Dual-Zone Crash x 2
Type of Hi-Hat Control	Hi-Hat Control Pedal
Drum Module	SM120
Number of Drum Kits	30 Preset Kits
Number of Instruments	456 Voices
Song Demo	15 Songs
Effect	–
Sensibility	Seperate
Kit Adjustment	Preset Kit , Volume, Sensibility, Curve, Mask Time, Retrig Level, Anti-Cross
Module Trigger Inputs	–
Module Analog Inputs	1/8” (AUX IN) x 1
Module Analog Outputs	1/4” (Phone) x 1
USB	USB Type-A, MIDI
MIDI I/O	–
Bluetooth	Yes
Sampling	–
Application	–
Multi-Track Recording	–
Power Source	DC 9V

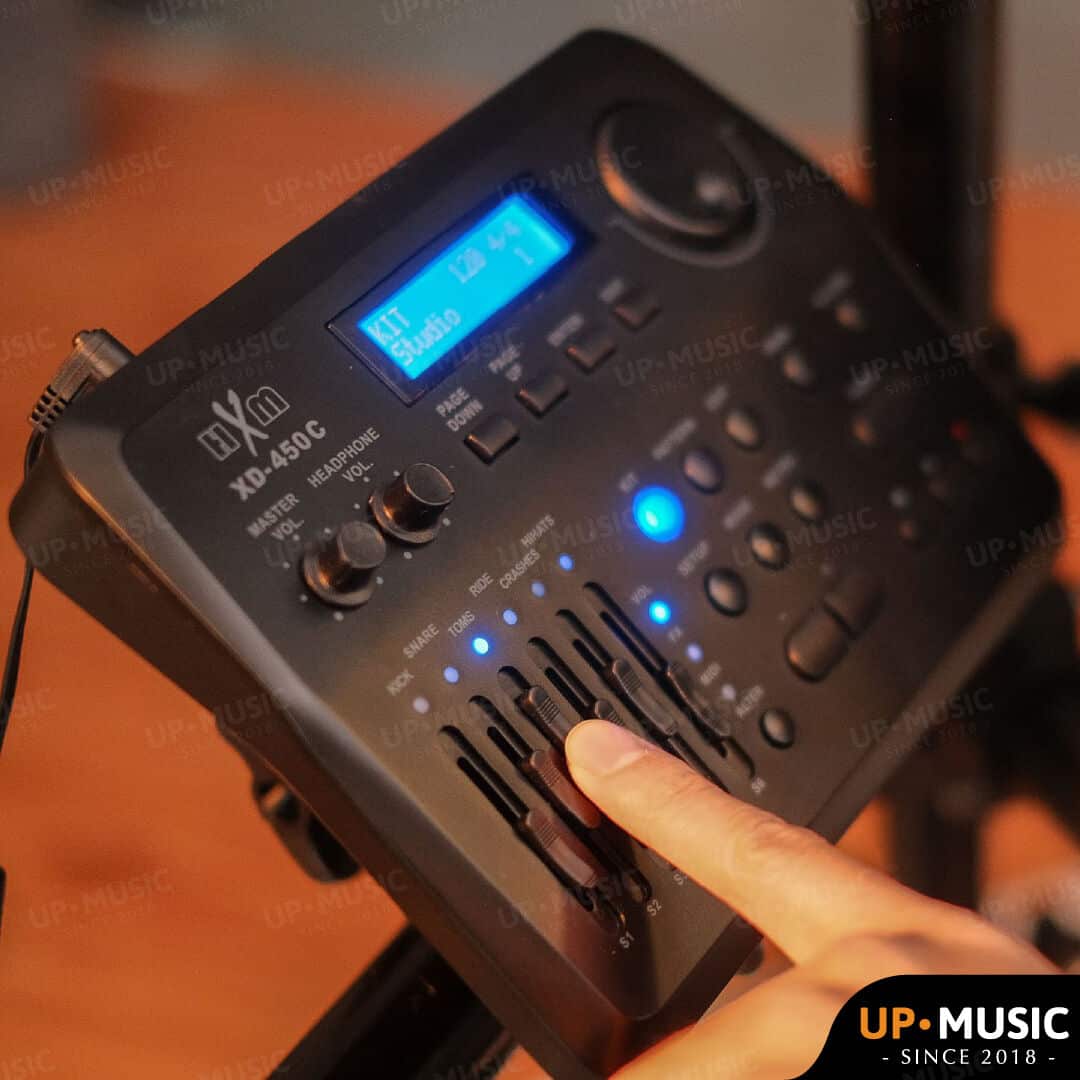

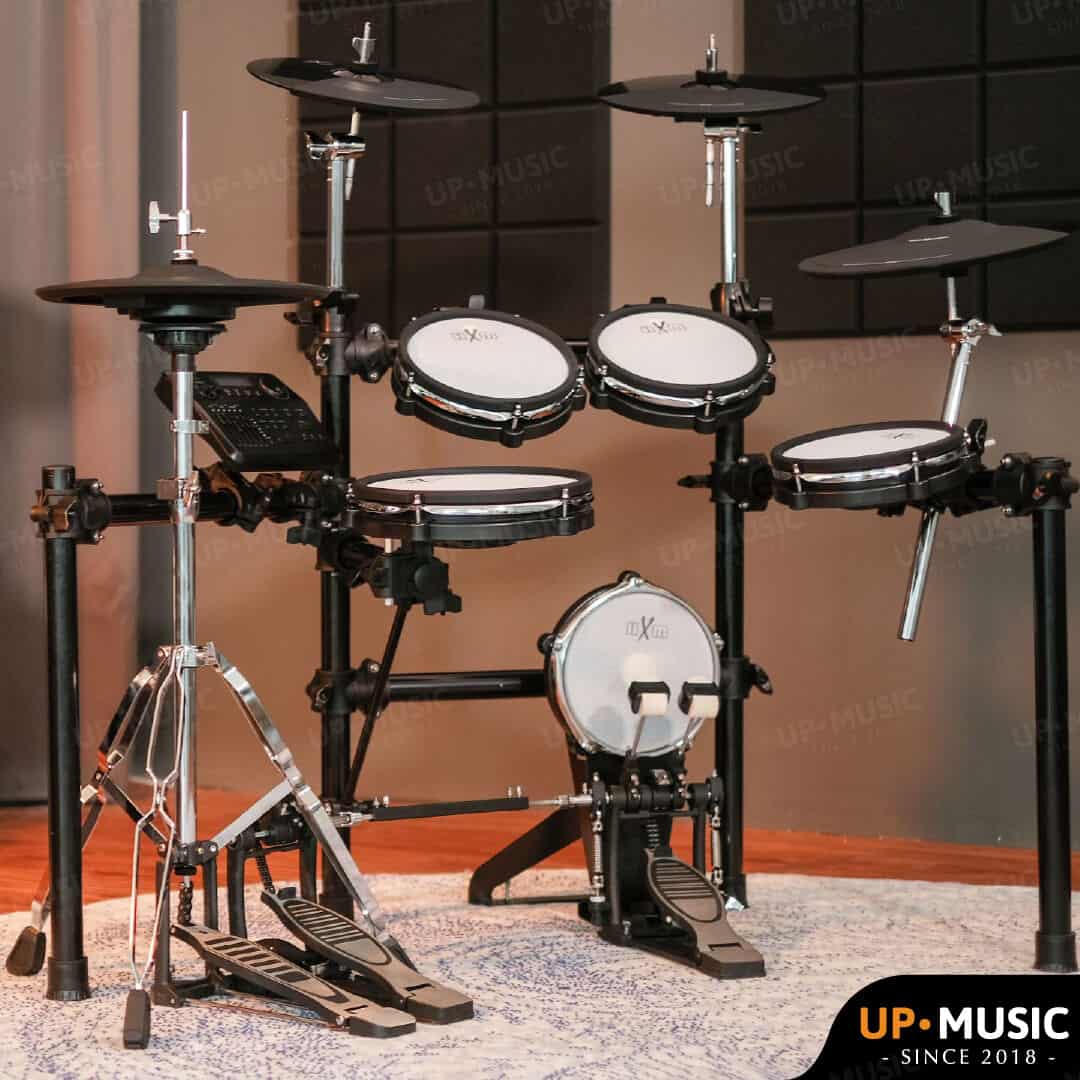

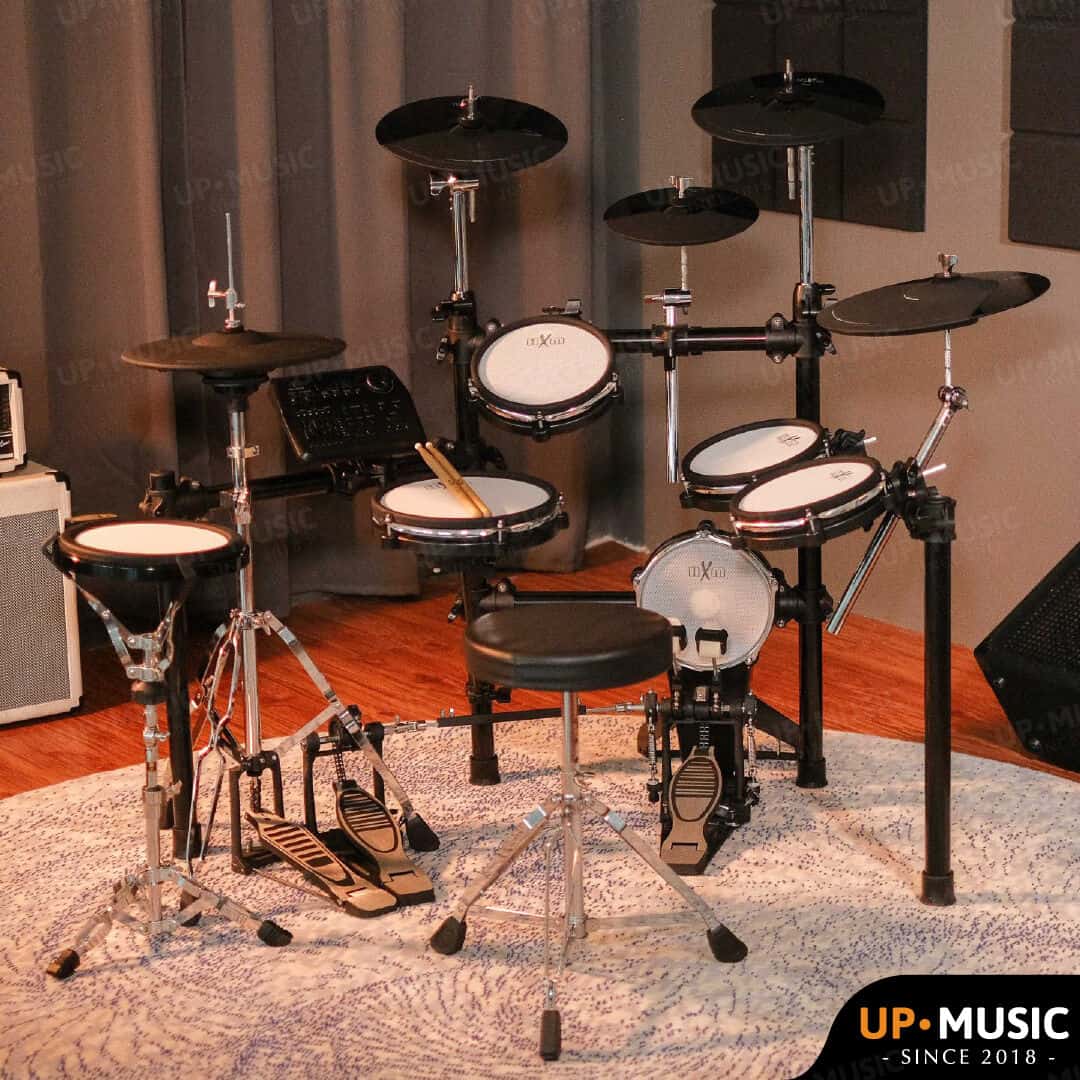

กลองไฟฟ้า HXM XD-450C
